Most of our products can be custom adapted to cover your particular instrument deployment needs.

For more information or sales inquiries please send us an email or call:

info@approtekmooring.com
+1 (619) 482 1544

Side looking and bottom rail retractable canal mounts for Acoustic Doppler Current Meter (ADP / ADCP)

MNT-SLM-B Side looking Acoustic Doppler Current Meter (ADP / ADCP) mount

SLM-B

MNT-SLM Side looking Acoustic Doppler Current Meter (ADP / ADCP) mount

SLM

MNT-SWM canal / waterway sidewall and bottom mount for Acoustic Doppler Current Meter (ADP / ADCP) instrument

SWM

MNT-SWM canal / waterway sidewall and bottom mount for Acoustic Doppler Current Meter (ADP / ADCP) instrument

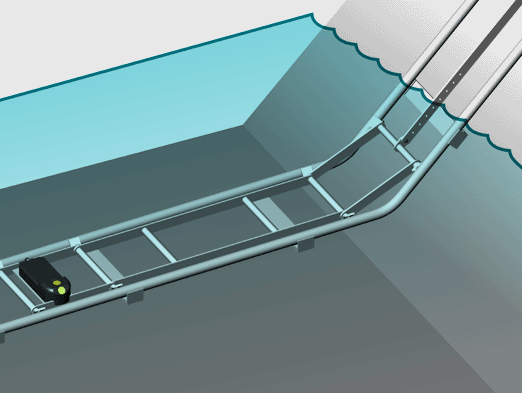

MNT-SWM ADCP mount animation

Features

  • Internal rail system for easy instrument deployment and retrieval
  • Modular design allows for multiple length and depth configurations
  • Built to custom canal wall angle up to 90°
  • Slim profile (~1.4") for minimal distance between the canal bottom and the instrument
  • Rounded rail walls reduce flow debris build up

Specifications

  • Type 6063 and 6061 Structural Aluminum construction (marine grade)
  • 316 Type Stainless Steel hardware
  • TIG process welding with type 5356 rod

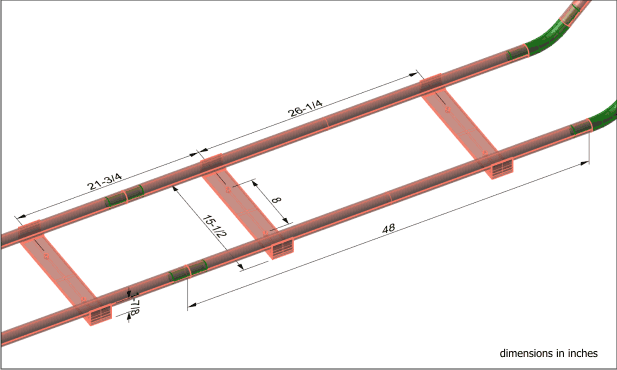

MNT-SWM ADCP mount base mounting dimensions
