PMD Series Trawl resistant Sea Floor Platform for Acoustic Doppler Current Meter instruments.

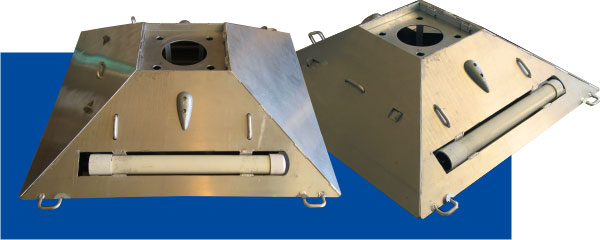

Sea Floor Platform for Sontek Argonaut XR
Sea Floor Trawl resistant platform for Sontek® Argonaut XR™
With integrated pvc weight container attachment.
Sea Floor Platform
Gimball stabilizer
  • Trawl resistant design
  • Constructed out of Marine Grade Aluminum or Type 316 Stainless Steel
  • Easy underwater instrument retrieval on some models
  • Multiple hoist points
  • Field tested design
  • Approximate weight in Marine Grade Aluminum: 30-40 kg.
  • Approximate weight in Type 316 Stainless Steel: 60-80 kg.
  • Additional weight rods can be fitted inside.
  • Optional Gimbal stabilizer.
  • More pictures of the platform
  • More pictures of the platform with gimball stabilizer

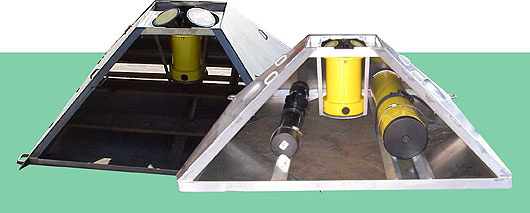

Sea Floor Platforms
Sea Floor Trawl resistant platforms
Pictured with Sontek® Argonaut™ series, battery and weight attachment.

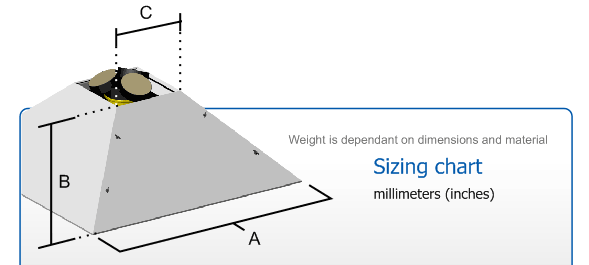

Sizing Chart. Weight is dependant on dimensions and material.
mounted instrumentdim Adim Bdim C

Sontek® Triton®

1016 (40")768 (30 1/4")273 (10 3/4")

SonTek® Argonaut XR™
(Low profile) 3.0, 1.5 and 0.75 MHz

965 (38")254 (10")305 (12")

Sontek® Argonaut® XR
3.0, 1.5 and 0.75 MHz

Sontek® Mini ADP®
3.0, 1.5 and 0.5 MHz

1016 (40")406 (16")305 (12")

Sontek® ADP
1.0, 0.5 and 0.25 MHz

1219 (48")457 (18")305 (12")
