Inline Mooring Cages for medium and high depth instrument deployment.

ILM-CgAMD heavy duty inline mooring cage

CgAMD

ILM-CgADPb heavy duty inline mooring cage for instrument and battery canister

CgADPb

ILM-CgADPbBy heavy duty subsurface buoy with in-line cage for instrument and battery canister

CgADPbBy

Heavy duty in-line mooring cage for four transducer ADP instrument and battery canister

CgADP4

ILM-CgAMD heavy duty inline mooring cage

Inline mooring cage structure of tough 1/2" type 316 stainless steel construction. Independently tested to support up to 10,000lbs of load.

Shown with Sontek® Argonaut MD® instrument series.

Cage weight without instrument: 8.5kg (18.73lb)

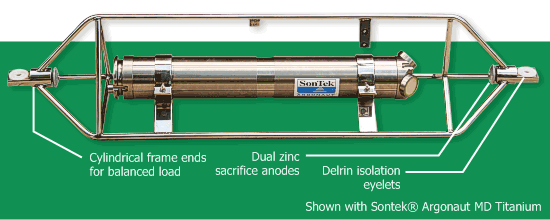

Dual zinc sacrifice anodes. Cylindrical frame ends for balanced load. Delrin isolation eyelets. Shown with Sontek® Argonaut MD Titanium.

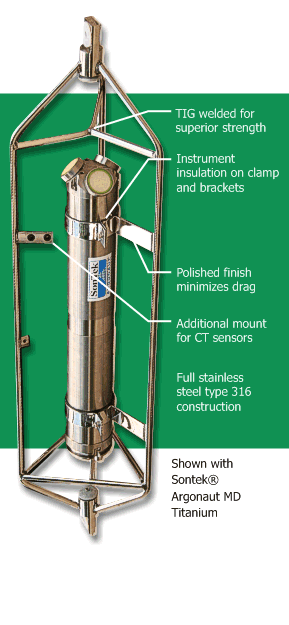

Full stainless steel type 316 construction. TIG welded for superior strength. Instrument insulation on clamp and brackets. Polished finish minimizes drag. Additional mount for Current/Temperature (CT) sensors. Shown with Sontek® Argonaut MD Titanium.

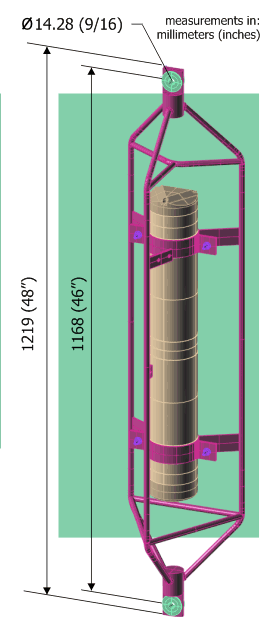

CgAMD structure dimensions diagram
